Omschrijving
Long distance 4K HDBaseT receiver that accepts 4K video, tally, control, and power over one ethernet cable

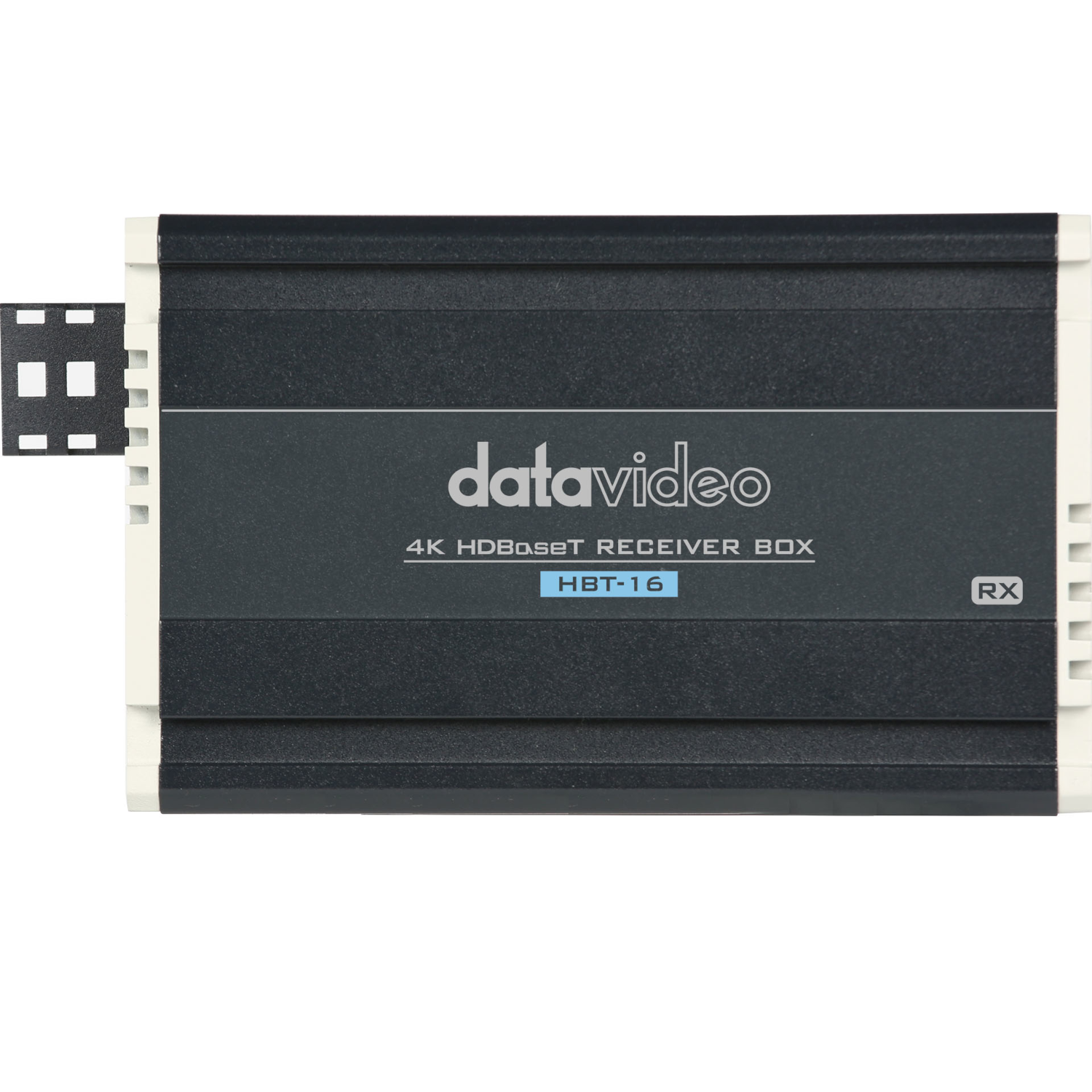

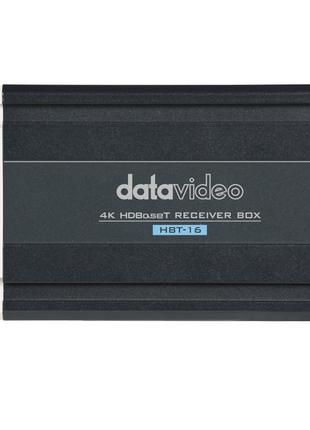

The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video.
Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
With the 56V power connected to one end of the HBT-16 HDBaseT receiver
The HBT-16 will thus be able to power the transmitting device by PoE plus technology (PoE++).
HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
HDMI Deep Color supports better color depths
HDMI Deep Color supports better color depths. To giving your display device a great image.
Extends 2160P video transmission up to 100m.
Long distance 4K solution. Support up to 4K 50/59.94/60p and receives up to 4K2160P video from the transmitter.
Support DVIP, RS-422, and RS-232 control protocols.
HBT-16 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflows benefits that HDBaseT technology offers.
