Omschrijving

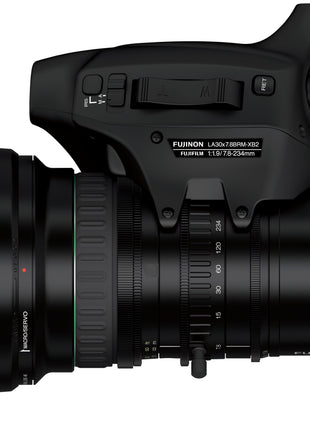

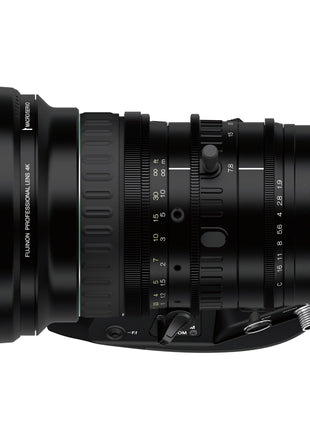

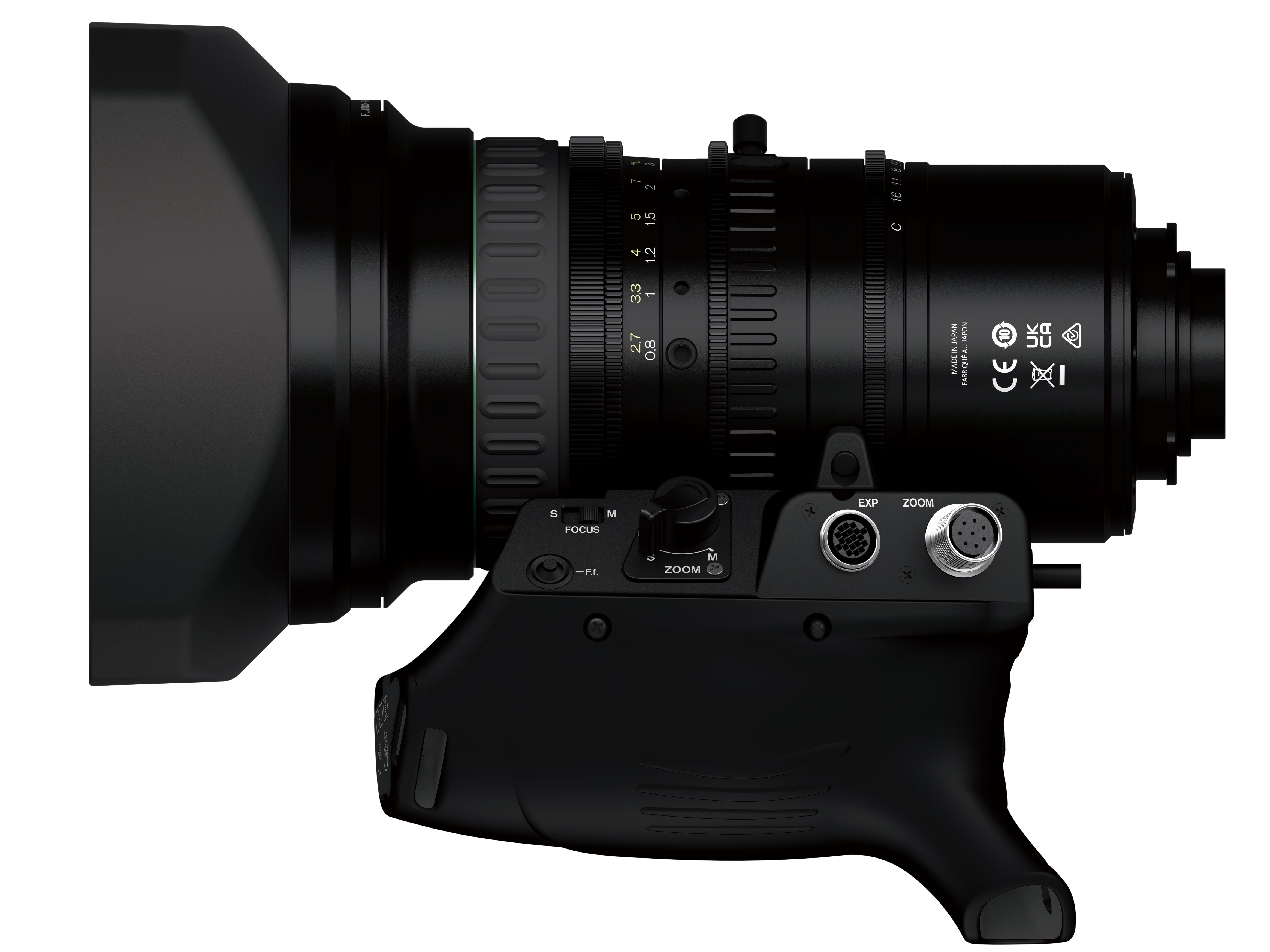

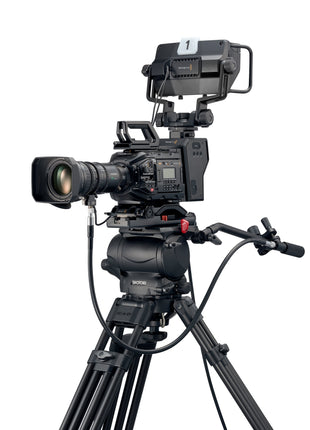

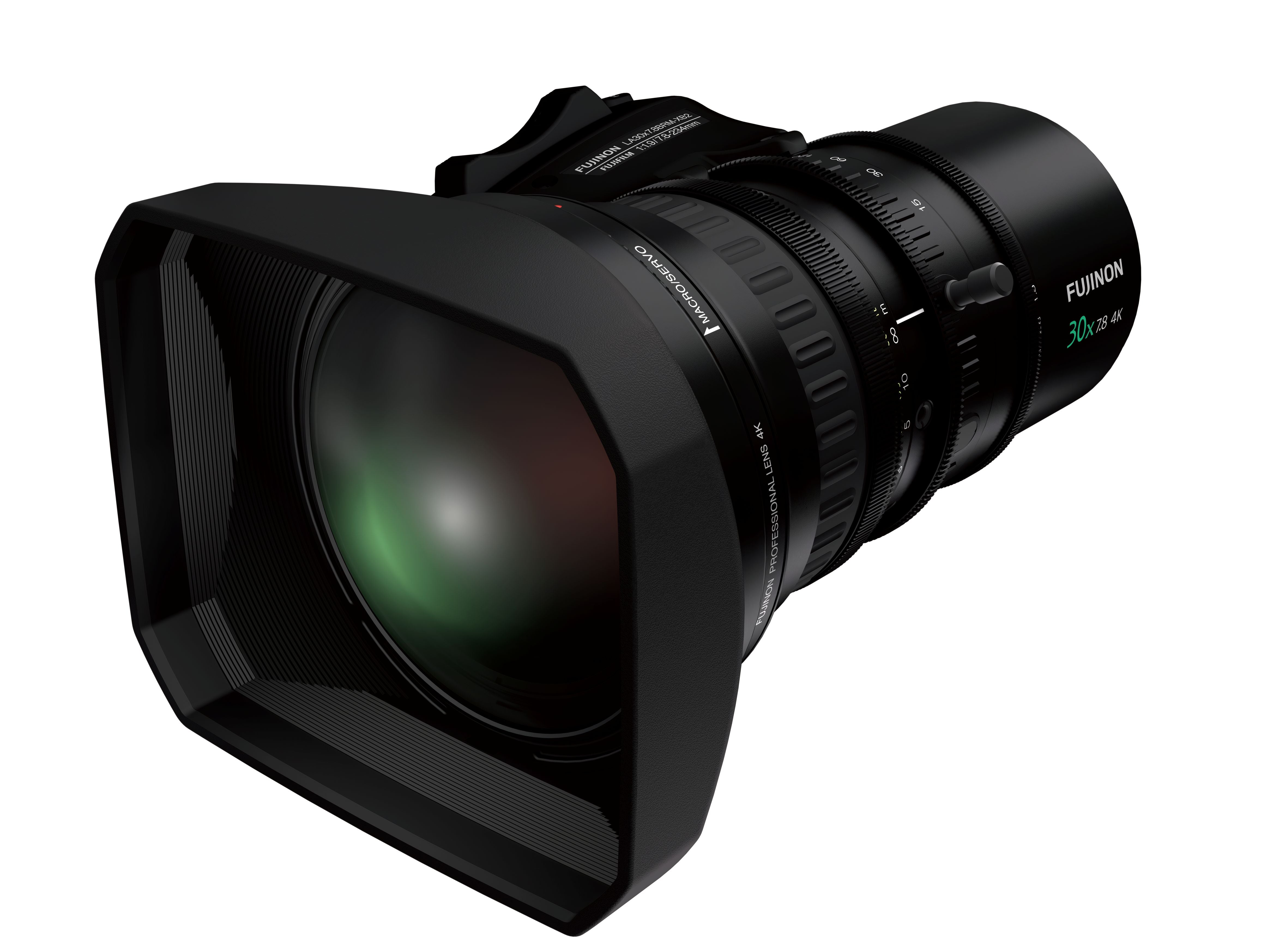

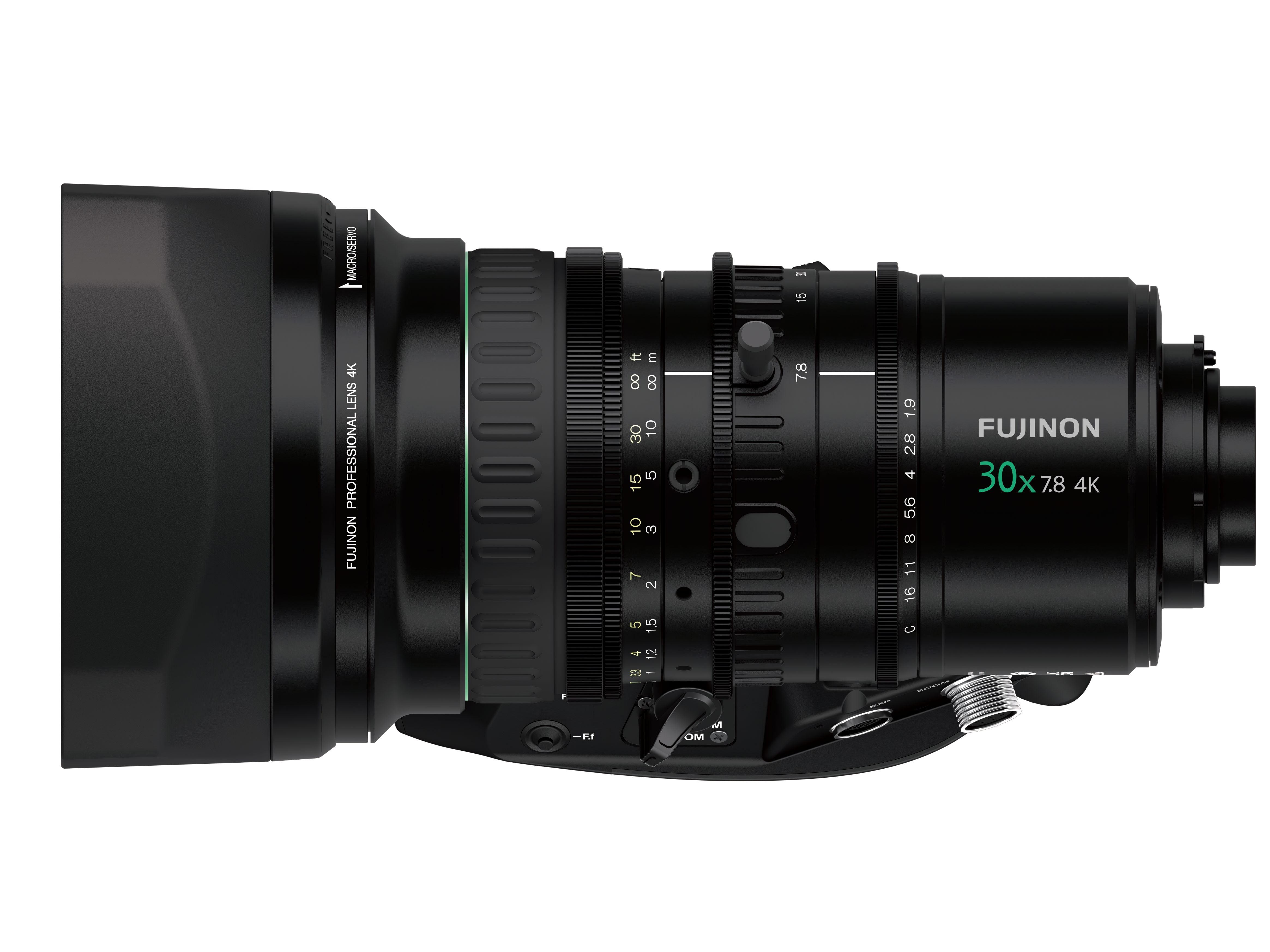

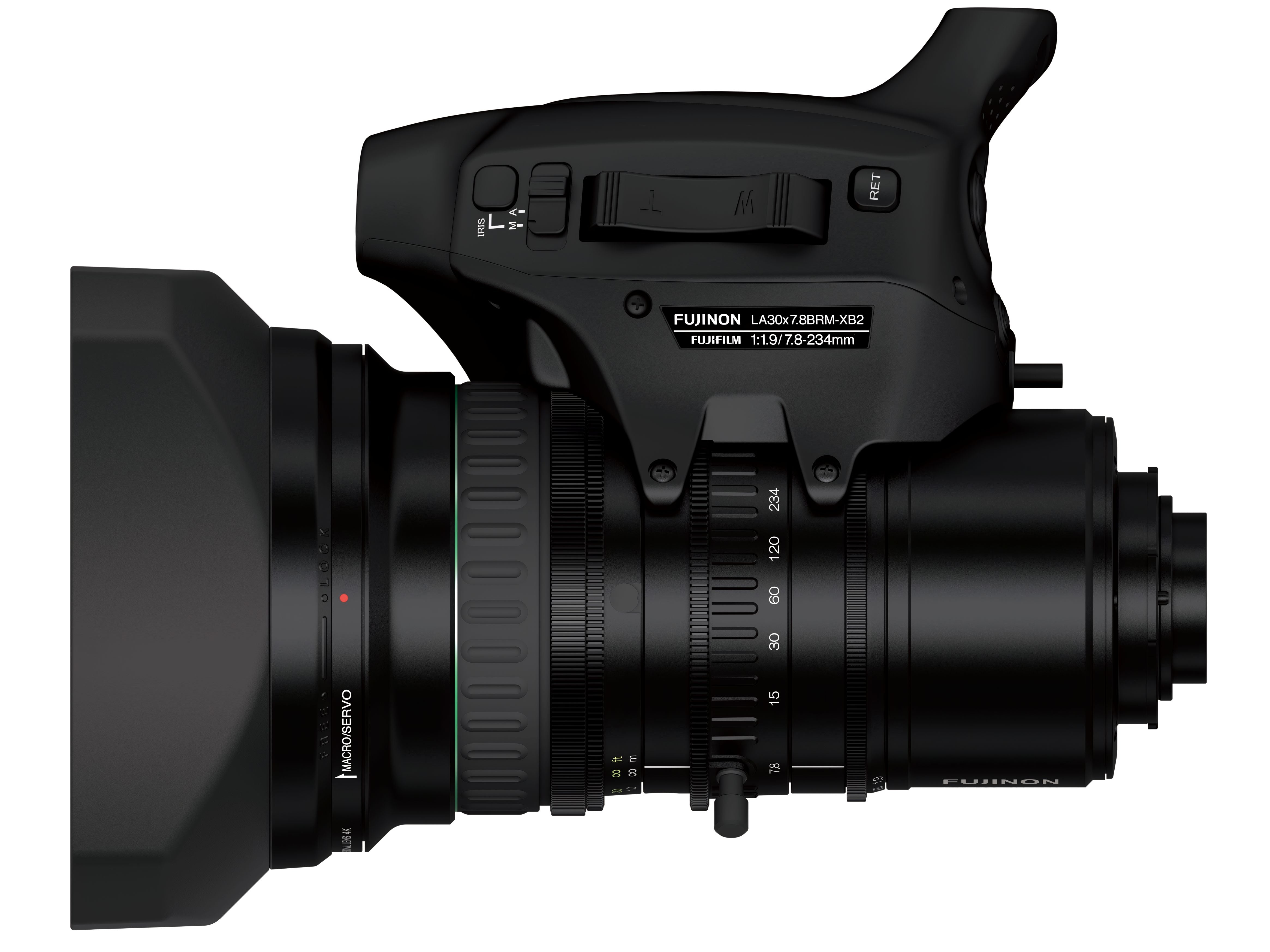

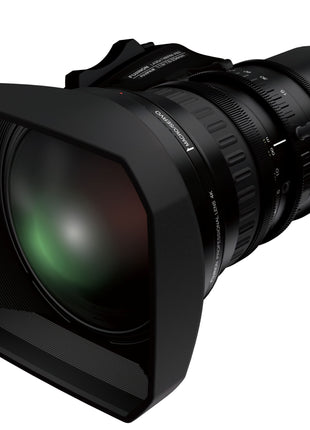

Introducing the FUJINON LA30x7.8BRM-XB2, Fujifilm’s latest 4K broadcast zoom lens engineered for 2/3-inch ENG-style cameras. With a highest-in-class 30x zoom range from 7.8mm to 234mm, this lens combines powerful performance with a compact 190mm body weighing just 1.7kg. Its newly developed drive unit includes 16-bit encoders for precise control in virtual and remote productions. The lens delivers stunning 4K image quality across the entire zoom range, enhanced by Fujifilm’s HT-EBC coating for superior light transmission and color fidelity. Additional features include macro focus, electronic flange back adjustment, and minimal focus breathing, making it ideal for dynamic, professional broadcast environments.
Main features
Highest-in-class 30x zoom range covering focal lengths of 7.8mm-234mm featuring compact and lightweight design
The lens boasts a highest-in-class 30x zoom, covering focal lengths of 7.8mm-234mm, while maintaining a compact and lightweight design, measuring just 190mm and weighing 1.7kg. This is achieved by adopting a rear focus mechanism, and optimizing the lens configuration and control methods, which Fujifilm has cultivated over many decades of lens design.
Since it covers the range with compact and lightweight body, it can reduce the burden of the shoulder-mounted operation and enable the ease of use to capture a large variety of scenes.
High functionality enabled by the newly developed drive unit
The newly developed drive unit features high resolution 16-bit encoders for extremely accurate position detection of zoom, focus and iris in virtual and remote production, which contributes to the streamlining of production operations.
The lens achieves maximum speed of 1.0 sec and minimum speed of 120 sec when zooming from wide to tele end. This versatile range helps to capture a fast-moving subject during live sport broadcast, while enabling ultra-slow zooms during live music to deliver creative capture of the footage.
4K optical performance across the entire zoom range
By utilizing the latest optical simulation technology and suppressing various type of aberrations, the lens achieves 4K optical performance across the entire zoom range. In addition, Fujifilm’s unique multi-layer coating "HT-EBC (High Transmittance Electron Beam Coating)" boasts high light transmittance and accurate color reproduction.
Equipped with features that support comfortable shooting
A single button on the lens provides electronic flange back*3 adjustment. The system provides faster and more efficient adjustment, as compared to the manual process.
The macro function allows for closer than M.O.D. focus up to 5cm from the front of the lens by sliding the unique focus ring forward. It enables the operator to film the extreme close-ups without letting go of their focusing hand.
When receiving auto focus commands from the camera, the lens shows minimal focus breathing and quiet operation which is made possible by the rear focus mechanism design.
Accessoiries for LA30x7.8
- Zoom Demand (SRD-92B)
- Focus Grip (CFH-3)
- Focus Manual Module (FMM-X1)
- Flexible Cable (CFC-12-990)
- Protection Filter (EPF-95)
