Omschrijving

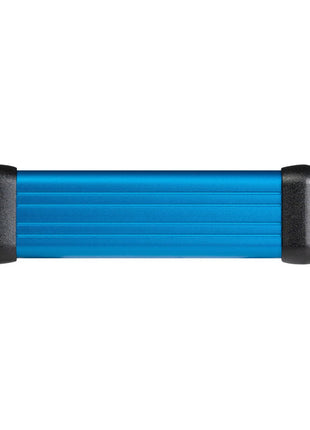

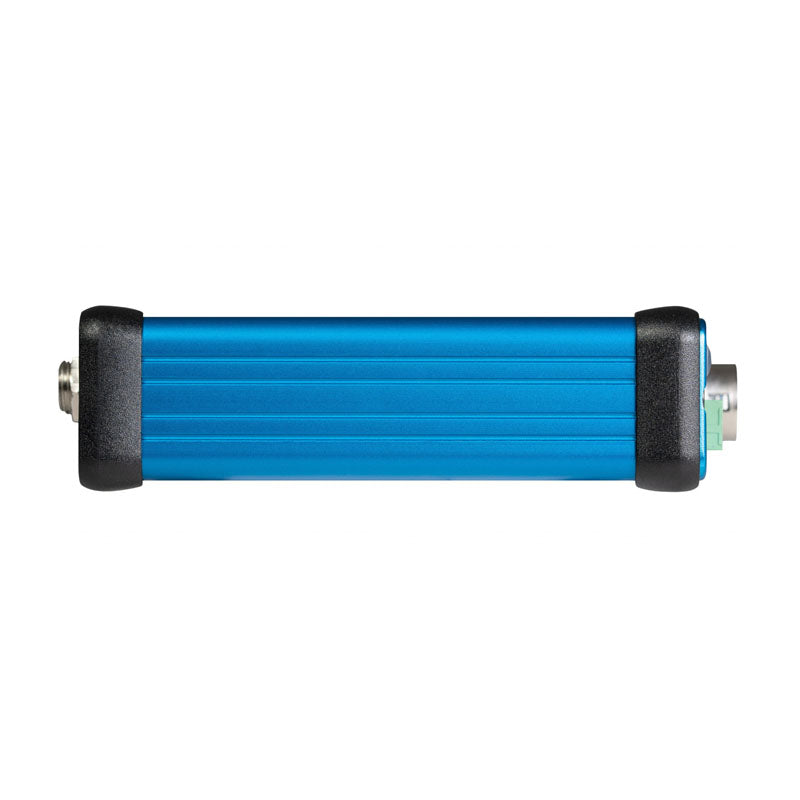

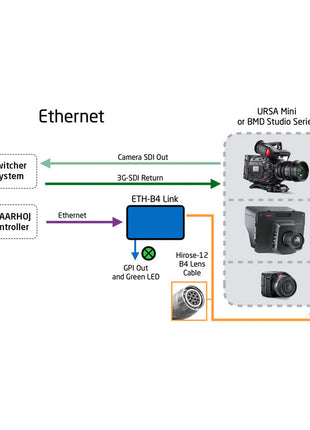

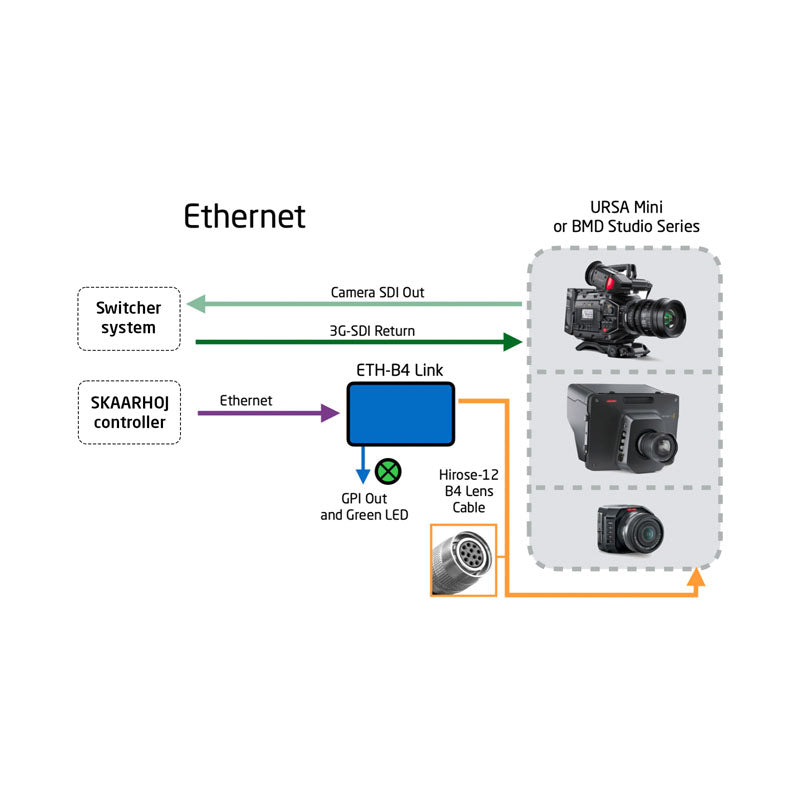

The ETH-B4 Link facilitates network connection for analog B4 broadcast lenses with a Hirose-12 connector, providing lens control via Ethernet. Utilizing SKAARHOJ's device cores, operators can precisely manage the iris of B4 lenses and access a dedicated tally channel. This device stands out with its incredibly light and compact form, offering a unique solution where iris control data is transmitted separately from camera control signals. Features include a camera selector switch for ID and IP configuration, analog output via Hirose-12 connector, and a dual-color tally lamp, along with a relay output for program tally signals, ensuring a comprehensive control experience.
Benefits
- Enables precise network-based control of B4 lens iris, enhancing production quality
- Light and compact form factor ensures easy integration into existing setups
- Separate iris control data transmission for increased reliability and flexibility
- Built-in camera selector switch for easy ID and IP management
- Features a dual-color tally lamp and relay output for comprehensive tally solutions

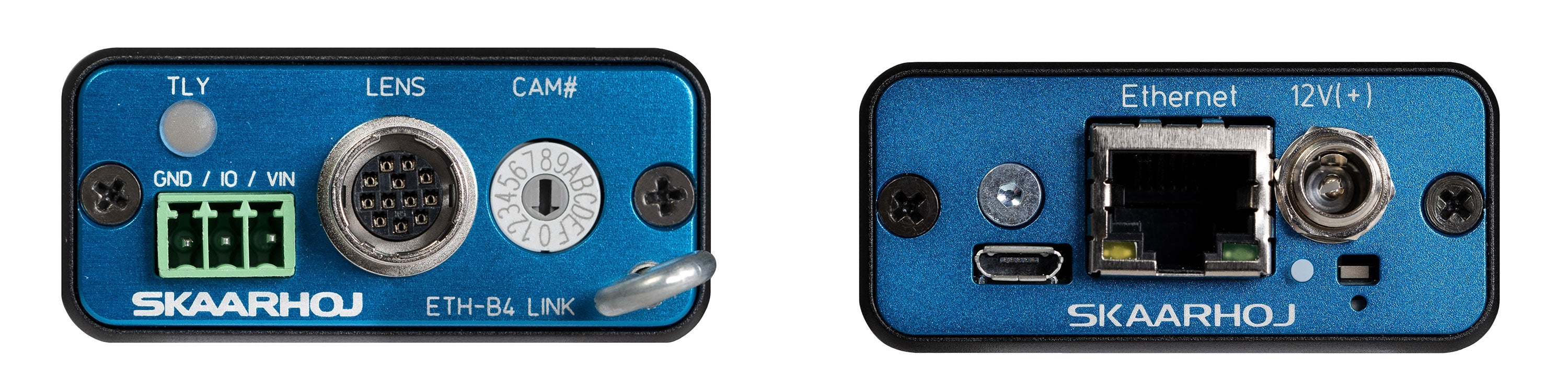

Features
- Hirose-12 connector for analog broadcast lenses
- Camera selector dip switch
- Relay output for Tally
- Tally LED integrated
- 100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af)
- Designed and made in Denmark
