Omschrijving

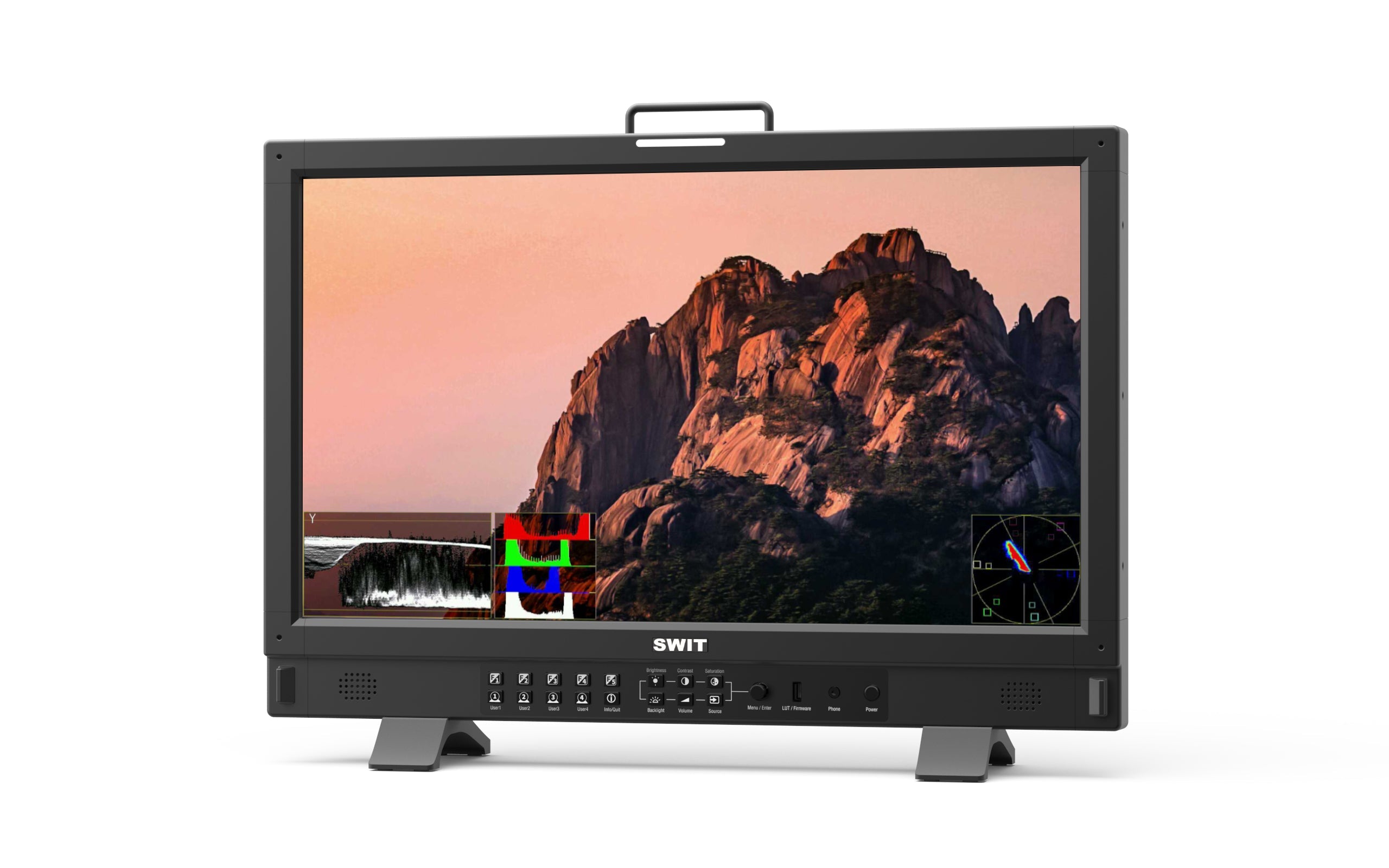

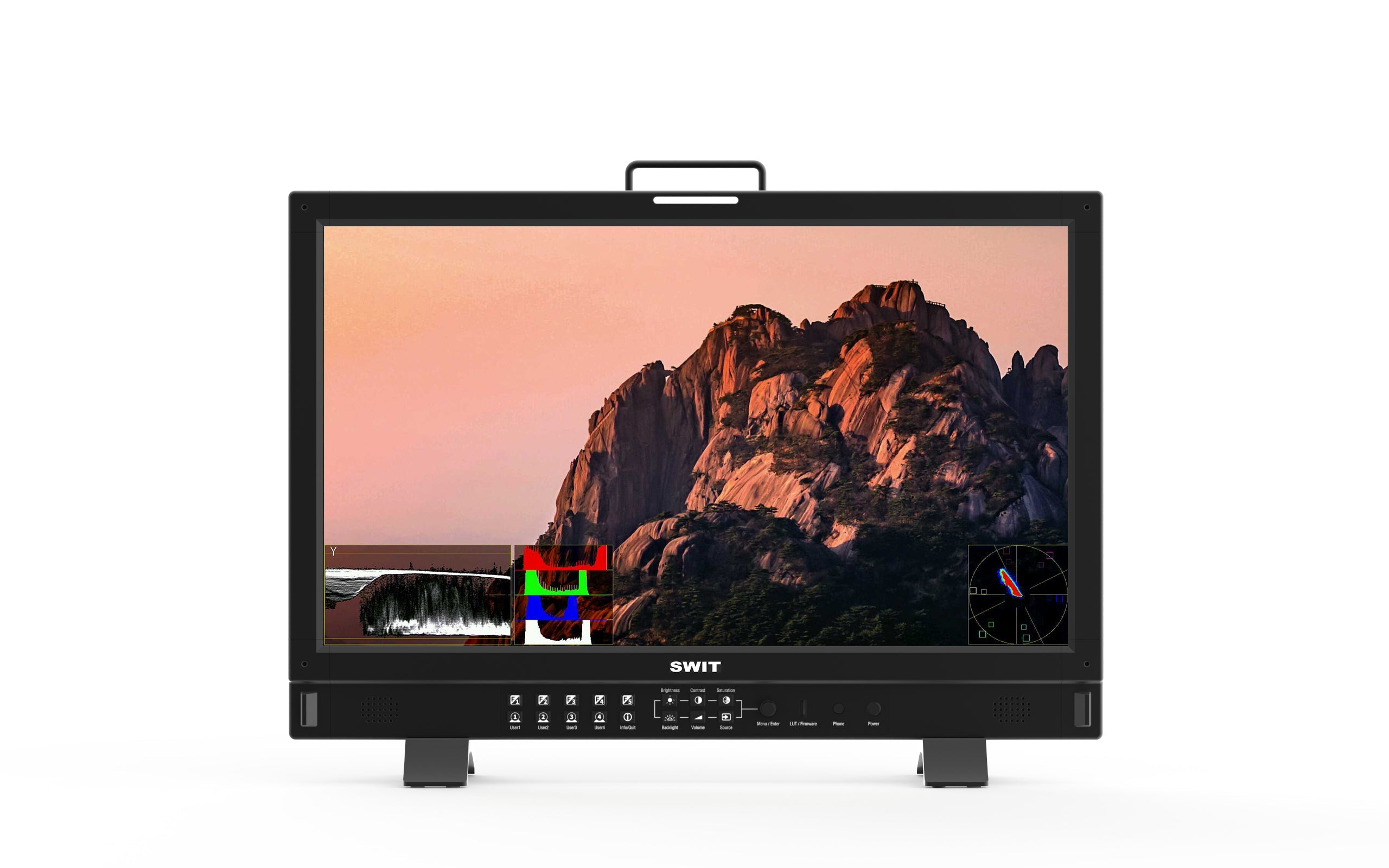

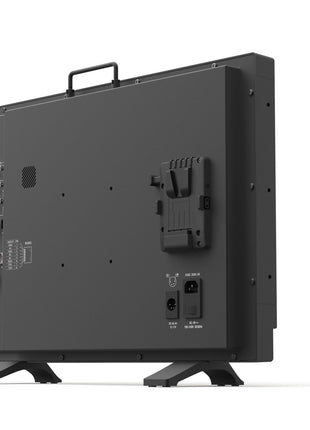

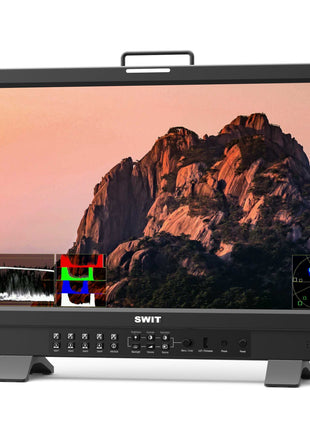

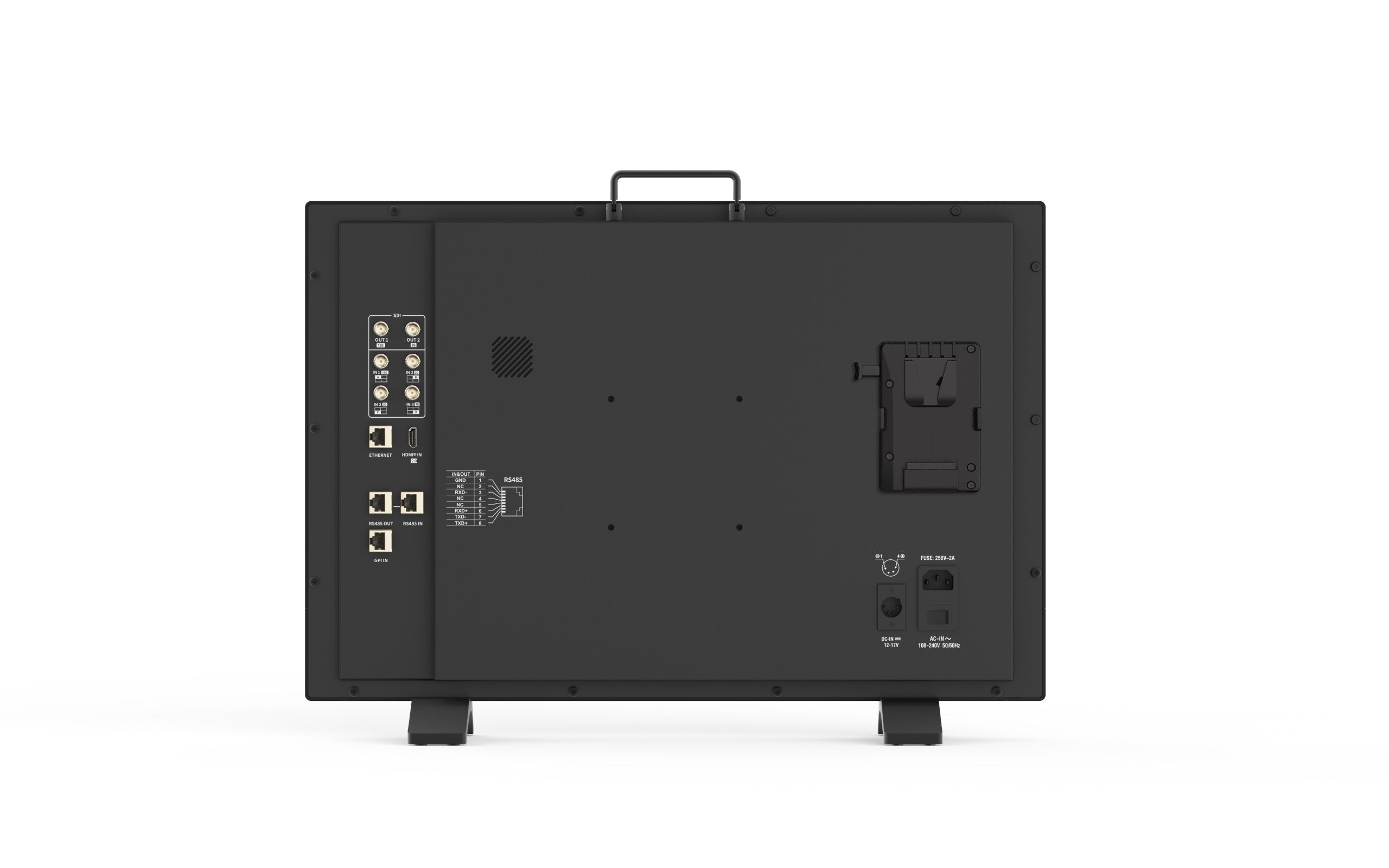

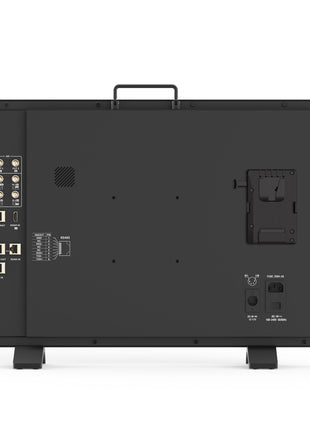

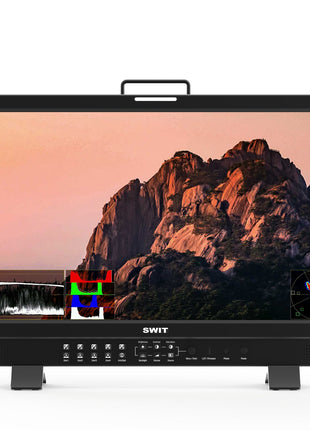

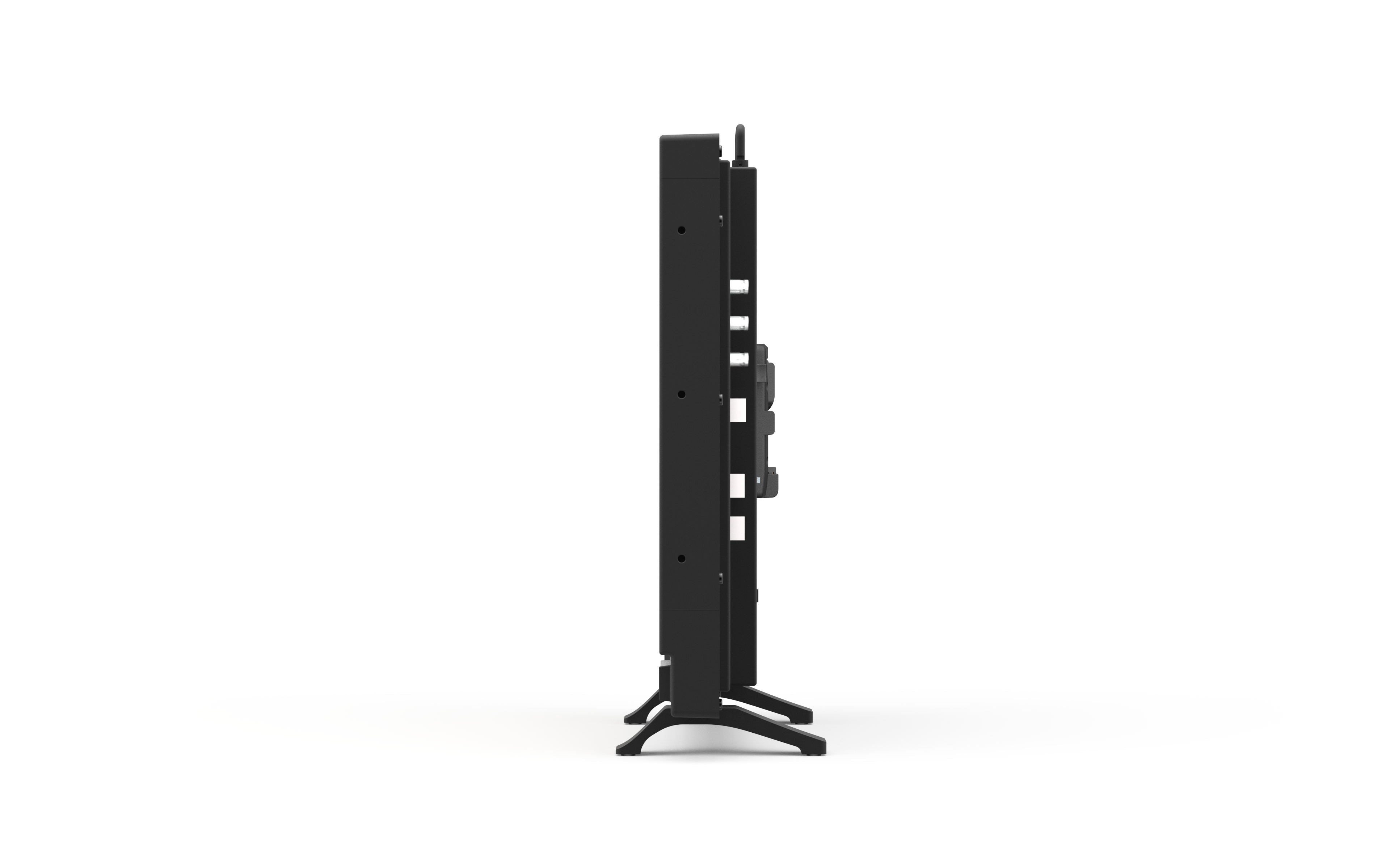

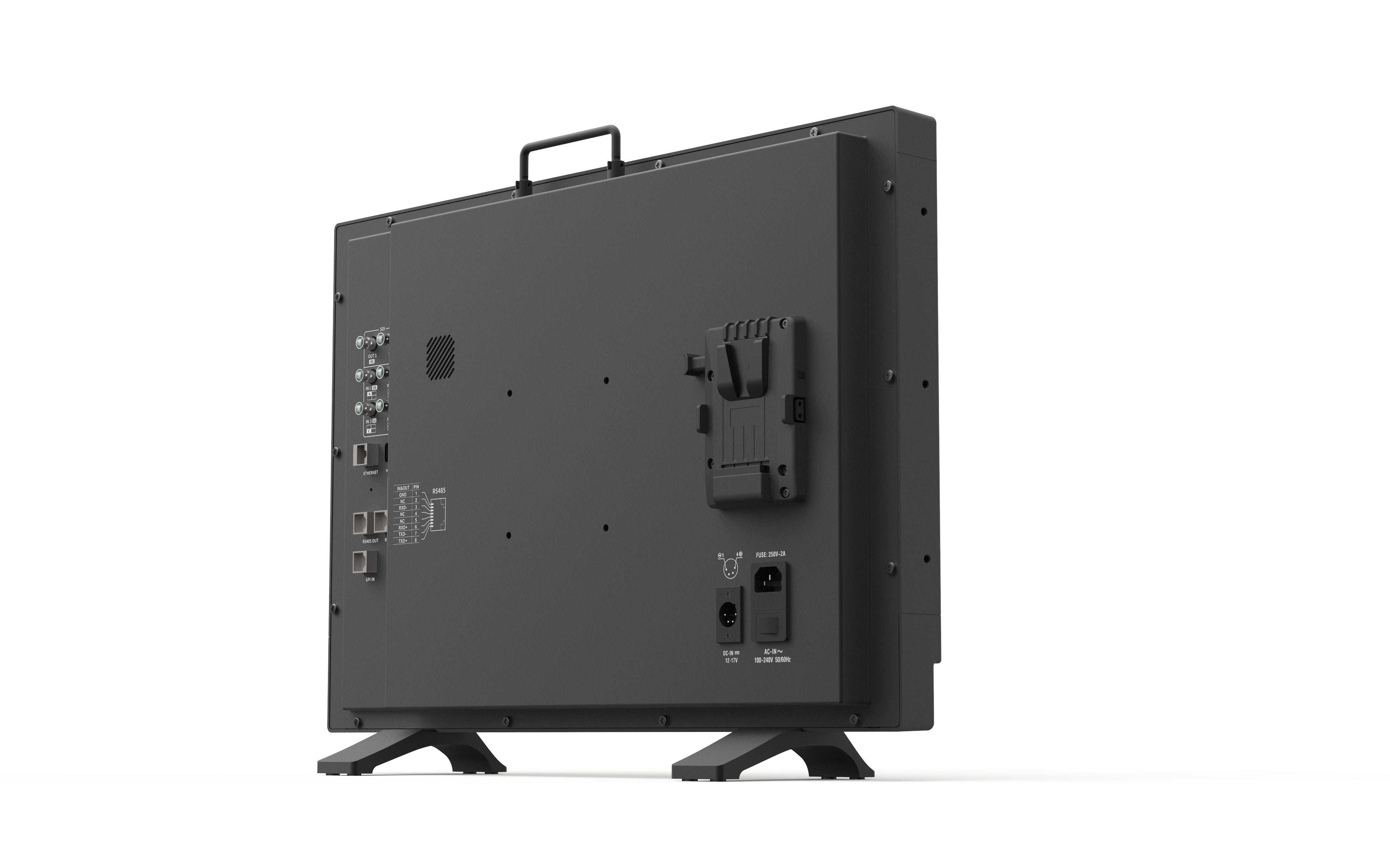

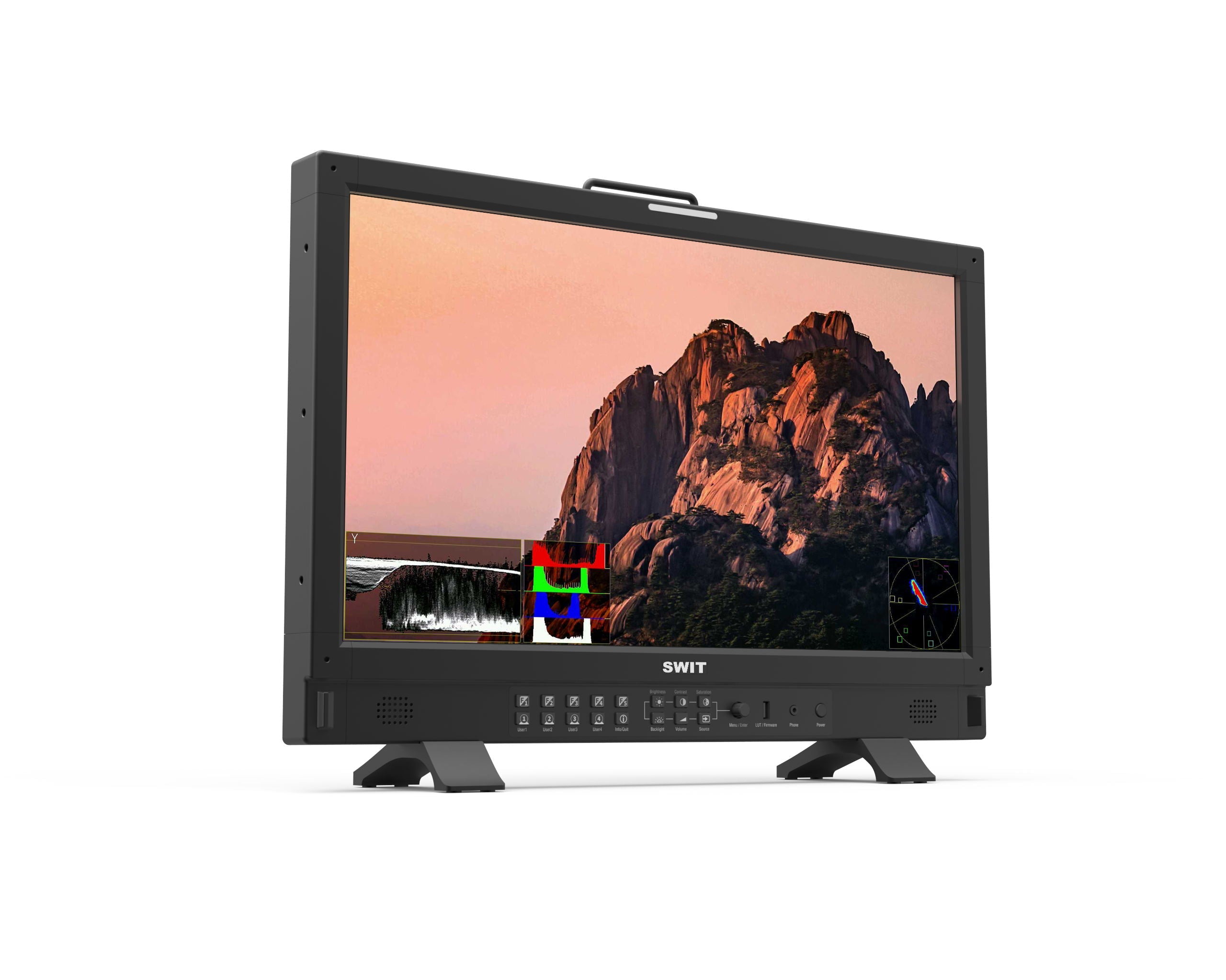

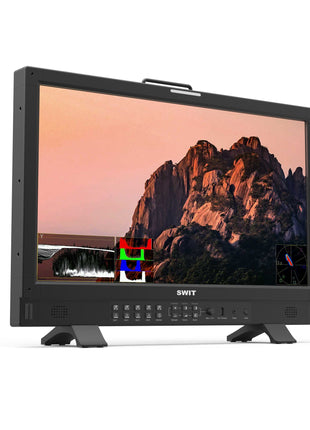

The BM-H245 is a 23.8-inch Full HD QLED production monitor engineered for professional broadcast and film environments. Featuring a 1920×1080 resolution panel with 100% DCI-P3 wide color gamut coverage, it delivers exceptional color accuracy and visual clarity. The monitor supports a wide range of 4K input formats including 12G-SDI, 4×3G-SDI (Quad Link), and HDMI 2.0, with flexible display modes such as multiview (4-channel), picture-by-picture (PBP), and picture-in-picture (PIP).
Equipped with advanced HDR/SDR EOTF support—including HLG, Dolby Vision PQ, and S-Log3—the BM-H245 ensures precise tone mapping and color space handling. It also features 18-bit internal color processing, zero-latency audio/video sync, and a suite of professional monitoring tools such as waveform, vectorscope, histogram, focus assist, false color, zebra, and 16-channel audio meters.
The monitor includes 3DLUT auto self-calibration via USB using X-Rite or JETI probes, and supports user LUT uploads. Its VICO 1.97 A-class eye-protecting LCD technology reduces blue light and visual fatigue, making it ideal for long editing sessions. Remote control is available via IP webserver, and the unit supports TSL UMD and tally display for studio integration. With robust connectivity, high-end color fidelity, and ergonomic design, the BM-H245 is a powerful tool for any professional video workflow.
